Relay boards

The control system uses two relay boards.

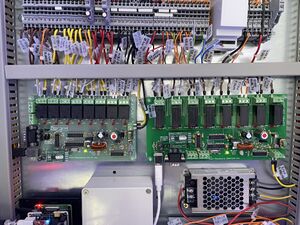

Relay boards mounted in the control cabinet. Low voltage to the left, high voltage to the right

The supplier of the relay boards is Conrad electronics:

• Low-voltage relay board 197720
• High-voltage relay board

The Raspberry Pi communicates with the relay board via USB, therefore an additional module needs to be assembled onto each relay board:

• RS232 to USB converter
